Core Backend Architecture

The core backend is a Go application built with the Gin web framework. It follows a layered architecture with clear separation between HTTP handlers, business logic services, data repositories, and infrastructure concerns.

Project Structure

core/
├── main.go                    # Entry point - config, DB, router, graceful shutdown
├── config.yaml.example        # Configuration template
├── Dockerfile                 # Multi-stage Docker build
│
├── routes/
│   └── routes.go              # All API route definitions and middleware wiring
│
├── handlers/                  # HTTP request handlers (controllers)
│   ├── auth_handler.go        # Register, login, OAuth, profile
│   ├── workflow_handler.go    # CRUD + run + save workflows
│   ├── workflow_version_handler.go  # Version control operations
│   ├── cluster_handler.go     # Cluster CRUD + status + metrics
│   ├── build_handler.go       # Container image builds
│   ├── import_handler.go      # Docker Compose / Git import
│   ├── resources_handler.go   # K8s resource management + streaming
│   ├── registry_handler.go    # Container registry management
│   ├── plugin_handler.go      # CRD plugin management
│   ├── dashboard_handler.go   # Dashboard stats
│   ├── search_handler.go      # Global search
│   ├── settings_handler.go    # Admin settings (invite codes)
│   ├── diagnostics_handler.go # Node diagnostics and auto-fix
│   └── oauth_handler.go       # OAuth2/OIDC provider handlers
│
├── services/                  # Business logic layer
│   ├── auth_service.go        # Auth logic, JWT, password hashing
│   ├── workflow_service.go    # Workflow CRUD operations
│   ├── workflow_executor.go   # Workflow execution engine (nodes → K8s manifests)
│   ├── workflow_version_service.go  # Version control logic
│   ├── kubernetes_cluster_service.go # Cluster connection management
│   ├── cluster_health_monitor.go    # Background health checks (60s interval)
│   ├── build_service.go       # Nixpacks container image building
│   ├── import_service.go      # Import analysis and conversion
│   ├── docker_compose_parser.go     # Docker Compose file parsing
│   ├── git_service.go         # Git repository operations
│   ├── resource_service.go    # K8s resource tracking
│   ├── resource_watcher.go    # Real-time K8s resource monitoring
│   ├── resource_watcher_manager.go  # Manages multiple watchers
│   ├── resource_sync_monitor.go     # Periodic resource sync
│   ├── sse_broadcaster.go     # Unified SSE pub/sub system
│   ├── pod_log_stream_manager.go    # Pod log streaming
│   ├── registry_service.go    # Container registry operations
│   ├── plugin_service.go      # Plugin management
│   ├── search_service.go      # Cross-entity search
│   ├── user_service.go        # User management
│   ├── oauth_service.go       # OAuth2/OIDC flow handling
│   ├── dashboard_service.go   # Dashboard statistics
│   ├── layout_engine.go       # Auto-layout for imported nodes
│   ├── node_converter.go      # Import → workflow node conversion
│   ├── nixpacks_service.go    # Nixpacks build integration
│   ├── fix_templates.go       # Auto-fix templates for diagnostics
│   └── service_diagnostics.go # Service health diagnostics
│
├── models/                    # Data models (MongoDB documents)
│   ├── auth.go                # User, role definitions
│   ├── workflow.go            # Workflow, nodes, edges, versions, runs
│   ├── cluster.go             # Cluster, credentials, metadata
│   ├── build.go               # Build job definitions
│   ├── import.go              # Import analysis results
│   ├── import_session.go      # Async import session tracking
│   ├── resource.go            # Tracked K8s resources
│   ├── registry.go            # Container registry configs
│   ├── plugin.go              # Plugin definitions
│   ├── dashboard.go           # Dashboard stats snapshots
│   ├── cluster_metrics.go     # Cluster resource metrics
│   ├── oauth.go               # OAuth state and code models
│   └── user.go                # User model
│
├── repositories/              # Data access layer
│   ├── cluster_repository.go
│   ├── resource_repository.go
│   ├── registry_repository.go
│   ├── plugin_repository.go
│   ├── build_repository.go
│   └── import_repository.go
│
├── middleware/                # HTTP middleware
│   ├── auth_middleware.go     # JWT validation + admin check
│   ├── workflow_middleware.go # Workflow ownership verification
│   ├── logs_middleware.go     # Request/response logging
│   └── utils.go              # Middleware utilities
│
├── database/
│   └── mongodb.go             # MongoDB connection, collections, indexes
│
├── pkg/                       # Shared packages
│   ├── applier/
│   │   └── manifest_applier.go    # Applies K8s manifests to clusters
│   ├── encryption/
│   │   └── encryption.go          # AES-256-GCM credential encryption
│   ├── kubernetes/
│   │   ├── auth.go                # K8s auth config builders
│   │   ├── config.go              # K8s client configuration
│   │   └── connection.go          # K8s connection management
│   ├── template/
│   │   ├── engine.go              # Template rendering engine
│   │   └── registry.go            # Template registry (discovery + loading)
│   └── validator/
│       └── resource_validator.go  # Resource validation rules
│
├── templates/                 # Kubernetes resource templates
│   └── core/
│       ├── deployment/        # Deployment template + metadata
│       ├── service/           # Service template
│       ├── ingress/           # Ingress template
│       ├── configmap/         # ConfigMap template
│       ├── secret/            # Secret template
│       ├── statefulset/       # StatefulSet template
│       ├── job/               # Job template
│       ├── cronjob/           # CronJob template
│       ├── daemonset/         # DaemonSet template
│       ├── hpa/               # HPA template
│       ├── networkpolicy/     # NetworkPolicy template
│       └── persistentvolumeclaim/ # PVC template
│
└── utils/
    ├── config/
    │   └── config.go          # Viper-based configuration loading
    └── gravatar.go            # Gravatar URL generation

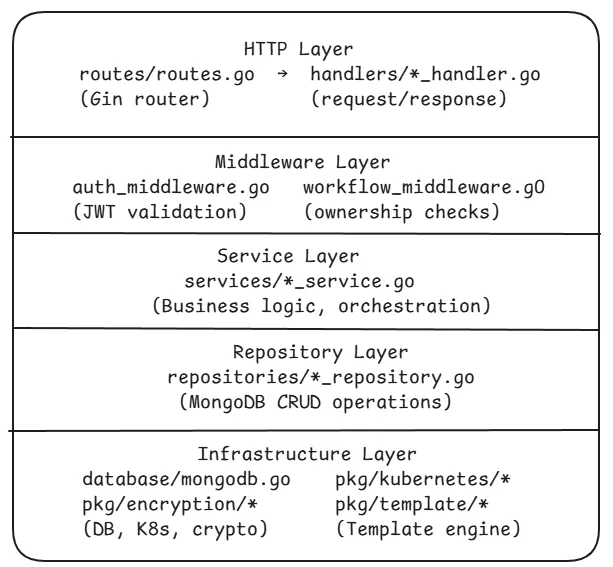

Layered Architecture

Key Design Patterns

Singleton Services

Several services use singleton patterns with sync.Once for thread-safe initialization:

• SSEBroadcaster — Single pub/sub hub for all real-time streams
• ResourceWatcherManager — Centralized K8s watcher lifecycle management
• ClusterHealthMonitor — Background health check loop

Template System

Resource templates are stored as YAML files in templates/core/. Each resource type has:

• metadata.yaml — Display name, description, category, default parameters
• template.yaml — Go template that renders to a Kubernetes manifest

The TemplateRegistry loads all templates at startup and the TemplateEngine renders them with user-provided parameters.

Workflow Execution Pipeline

When a workflow is “run”, the executor processes each node:

1. Load workflow from MongoDB with all nodes and edges
2. Resolve connections — determine dependency order from edges
3. For each node, based on its type:
   • Merge node data with template defaults
   • Render the Kubernetes manifest YAML using the template engine
   • Apply the manifest to the target cluster via ManifestApplier
4. Start resource watchers for deployed resources
5. Stream status updates via SSE as each resource becomes ready

Credential Security

All cluster credentials are encrypted before storage:

User Input → AES-256-GCM Encrypt → MongoDB
MongoDB → AES-256-GCM Decrypt → client-go Config

Credentials are never returned in API responses after creation.

Startup Sequence

main.go
  ├── config.Load()                    # Load config.yaml + env vars via Viper
  ├── Validate auth configuration      # At least one auth method must be enabled
  ├── database.Connect()               # Connect to MongoDB, create indexes
  ├── template.InitializeGlobalRegistry()  # Load K8s resource templates
  ├── routes.SetupRouter()             # Configure Gin routes + middleware
  ├── ClusterHealthMonitor.Start()     # Start background health checks
  ├── GetSSEBroadcaster()              # Initialize SSE pub/sub system
  ├── srv.ListenAndServe()             # Start HTTP server
  └── Graceful Shutdown                # Stop watchers, SSE, health monitor, DB

Graceful Shutdown

The server handles SIGINT and SIGTERM signals with ordered cleanup:

1. Stop all resource watchers
2. Close SSE broadcaster (disconnect all clients)
3. Stop health monitor
4. Shutdown HTTP server (10s deadline)
5. Close MongoDB connection
