Ecosystem Overview

KubeOrch is a three-repo platform: a Go backend (core), a Next.js frontend (ui), and a developer CLI (cli), connected via REST APIs and Server-Sent Events (SSE) for real-time updates. The CLI orchestrates the local development environment using Docker Compose.

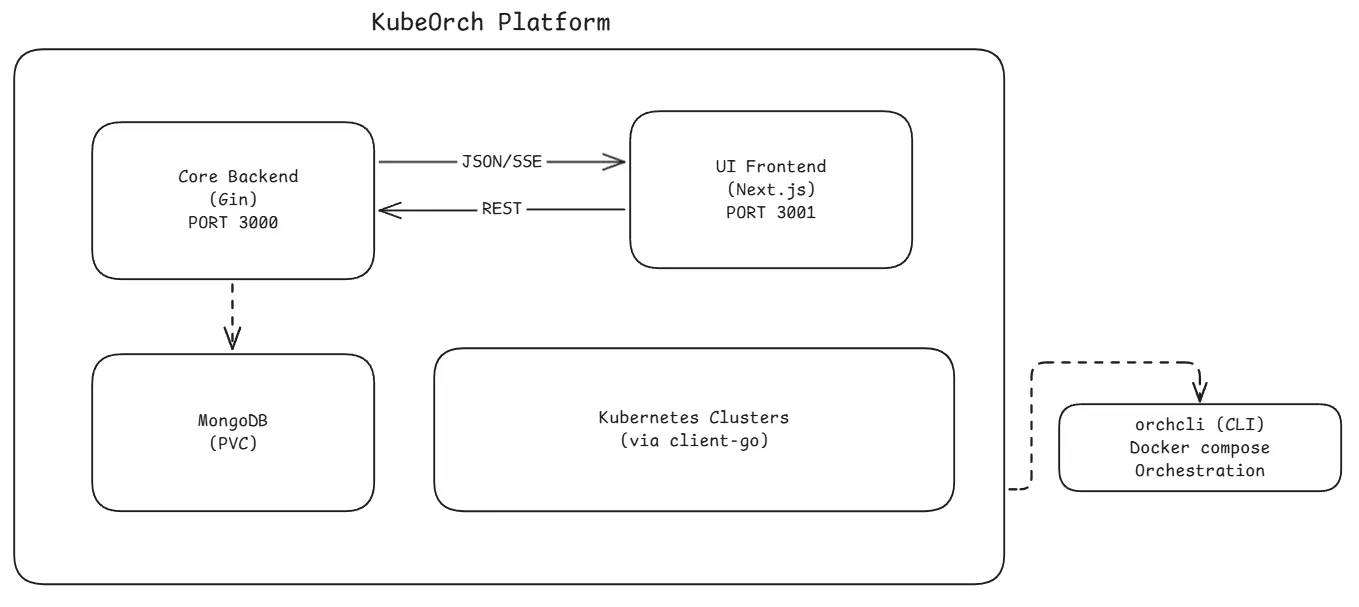

System Architecture

Component Responsibilities

Core Backend (Go)

The backend is the brain of the platform. It:

• Serves the REST API on port 3000 under the /v1 prefix
• Manages Kubernetes clusters — stores encrypted credentials, tests connections, monitors health
• Executes workflows — converts visual node graphs into Kubernetes manifests and applies them via client-go
• Handles authentication — JWT-based auth with support for OAuth2/OIDC providers (GitHub, Authentik, etc.)
• Streams real-time data — SSE broadcaster for workflow status, pod logs, resource status, build progress, and import progress
• Builds container images — integrates with Nixpacks for source-to-image builds
• Imports projects — parses Docker Compose files and Git repos into workflow node graphs
• Manages templates — provides pre-configured resource templates for the component palette
• Handles plugins — CRD-based extensible plugin system for custom resource types

UI Frontend (Next.js)

The frontend provides the user experience. It:

• Visual Workflow Canvas — React Flow-based drag-and-drop editor with 15+ node types
• State Management — Zustand stores for auth, workflows, clusters, resources, plugins, and registries
• API Client — Axios-based client with automatic JWT refresh and 401 redirect handling
• Real-Time Streaming — SSE/EventSource hooks for live workflow status, pod logs, and build progress
• Dashboard — Overview with stats, recent workflows, and cluster status
• Settings & Admin — Cluster management, registry configuration, user profiles

CLI (orchcli)

The CLI is the developer experience layer. It:

• Initializes projects — clones UI/Core repos (or forks), installs dependencies concurrently
• Manages Docker Compose — auto-selects the right compose file based on which repos are cloned locally
• Supports 4 development modes — production (all Docker), full dev (both local), frontend-only, backend-only
• Provides service management — start, stop, restart, logs, status, exec, and debug commands
• Handles fork workflows — auto-configures upstream remotes for external contributors
• Auto-installs dependencies — detects and installs Git, Node.js, and Go when needed

Data Layer (MongoDB)

MongoDB stores all persistent data across these collections:

Collection	Purpose
users	User accounts, roles, OAuth provider links
workflows	Workflow definitions with nodes, edges, and metadata
workflow_versions	Version history for workflows (separate collection for scalability)
workflow_runs	Execution history and logs for each workflow run
oauth_states	Temporary OAuth flow state (TTL: 10 min)
oauth_codes	Temporary OAuth authorization codes (TTL: 30 sec)
dashboard_stats	Pre-computed dashboard statistics

Additional data is stored in MongoDB via repository patterns:

• Clusters, resources, registries, plugins, builds, and import sessions

Communication Patterns

REST API (Request-Response)

All CRUD operations use standard REST over HTTP. Every route lives under the /v1 prefix and requires a Authorization: Bearer <token> header except for auth endpoints.

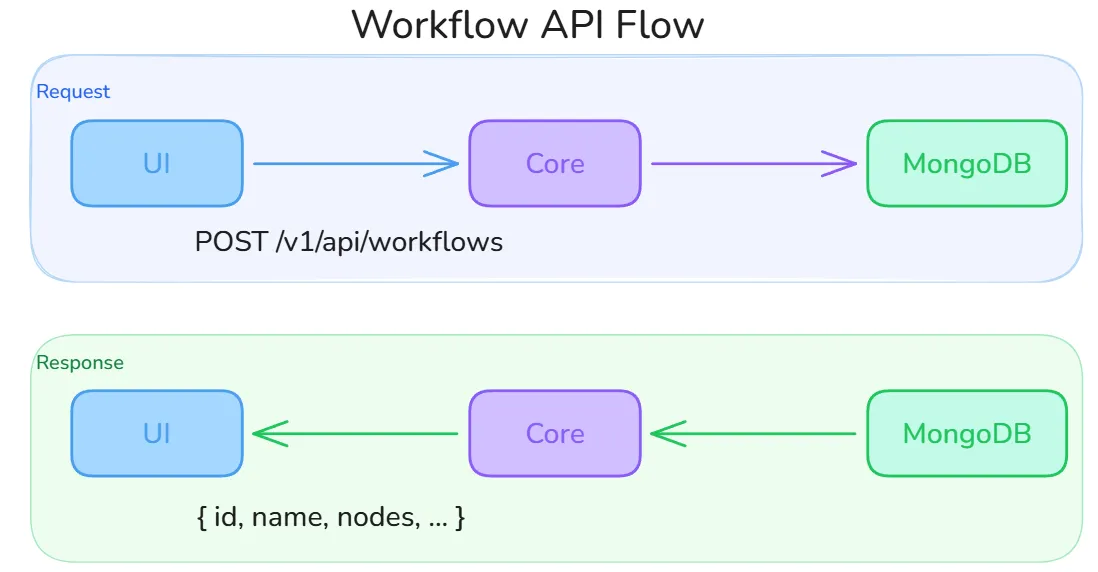

The diagram above shows the lifecycle of a typical workflow operation: the UI sends a request (e.g., POST /v1/api/workflows with name, description, and cluster_id), the Core handler validates ownership and input, performs the operation against MongoDB, and returns the full document. All API calls in the UI go through a centralized Axios instance (lib/api.ts) that automatically injects the JWT, handles transparent token refresh via a shared promise (preventing concurrent refresh races), and redirects to /login on a 401.

SSE (Server-Sent Events)

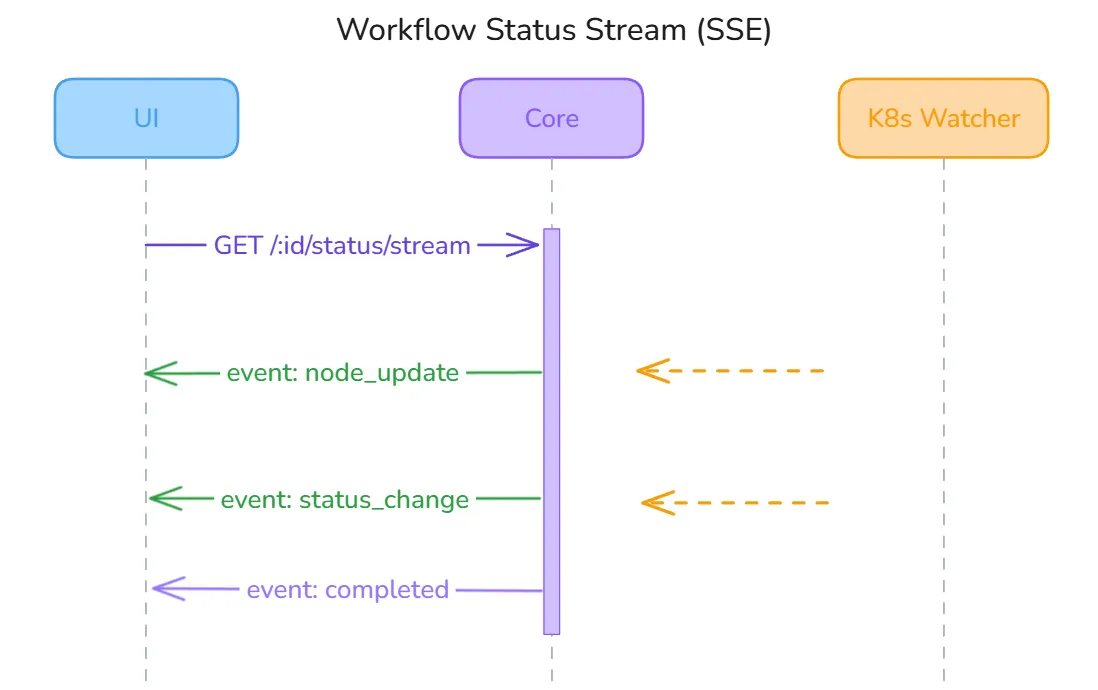

Real-time updates are pushed to the UI using Server-Sent Events. The Core maintains a singleton SSEBroadcaster (initialized once via sync.Once) that maps stream keys to slices of subscriber channels:

How it works end-to-end:

1. The UI opens a long-lived HTTP connection using fetch() with an Authorization: Bearer header. Native EventSource is intentionally avoided because it does not support custom headers.
2. The Core’s SSE handler subscribes to the broadcaster under the relevant stream key (e.g., workflow:<id>) and begins flushing events as they arrive.
3. The SSEBroadcaster fans events out non-blocking — if a subscriber’s channel buffer is full (slow client), the event is dropped and a warning is logged rather than blocking other subscribers.
4. The UI hook (useWorkflowStatusStream) parses incoming events by type — metadata, node_update, workflow_sync, error, and complete — and updates local React state. A global activeConnections Set prevents duplicate streams from React StrictMode double-mounts.
5. On disconnect, the hook schedules a reconnect after 3 seconds.

Active stream key namespaces:

Stream key	Purpose
workflow:<id>	Node-level status during workflow execution
pod-logs:<id>	Live container log streaming from a running pod
resource:<id>	Kubernetes resource health changes
build:<id>	Container image build progress (clone → build → push)
import:<id>	Docker Compose / Git import analysis progress

WebSocket

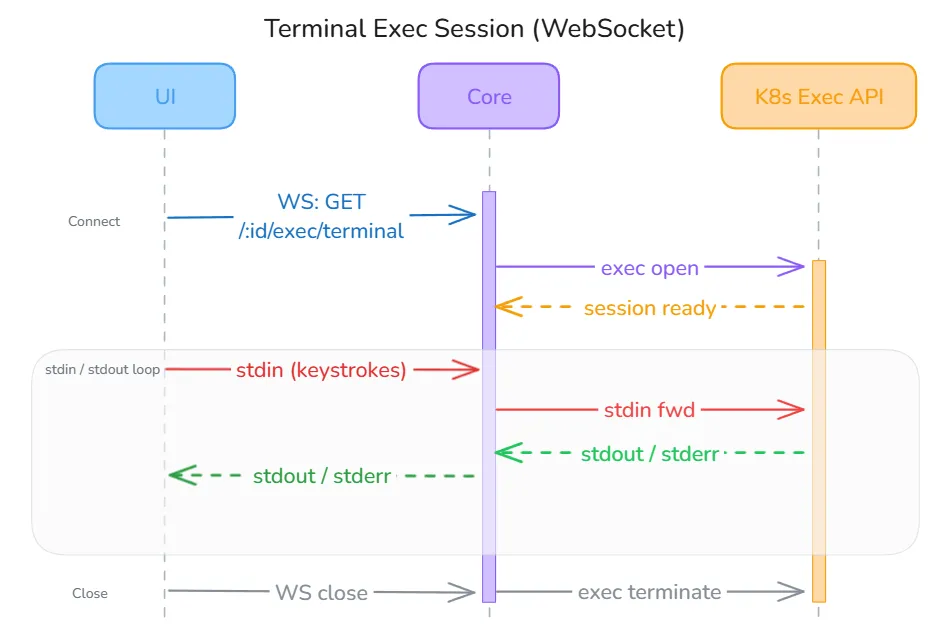

Terminal access to running pods uses a WebSocket connection for full bidirectional communication (stdin/stdout/stderr):

The UI connects to GET /v1/api/resources/:id/exec/terminal?shell=bash&token=<jwt>. The JWT is passed as a URL query parameter because browser WebSocket APIs do not support custom headers — this is a known limitation documented in the codebase with a TODO to implement a short-lived ticket exchange on the backend for improved security. Once connected, the Core proxies input and output directly to the Kubernetes Exec API (client-go). The UI hook (useTerminal) handles four message types: metadata (connection confirmed), output (terminal data), error (session error), and close (session ended), and auto-reconnects unless the session was intentionally closed.

Authentication Flow

1. User ── POST /auth/login ──► Core
2. Core validates credentials against MongoDB
3. Core ◄── returns JWT token (24h expiry)
4. UI stores token in localStorage (Zustand persist)
5. All subsequent requests include: Authorization: Bearer <token>
6. Token refresh: POST /auth/refresh (max 7 days)

OAuth2/OIDC flow:

1. UI ── GET /auth/oauth/:provider/authorize ──► Core ──► Provider
2. Provider ──► callback to Core ──► exchanges code for user info
3. Core creates/links user account, generates JWT
4. Core redirects to UI with authorization code
5. UI ── POST /auth/oauth/exchange ──► Core ──► returns JWT

Kubernetes Integration

The core backend connects to Kubernetes clusters using client-go. Each cluster connection supports 5 authentication methods:

• KubeConfig — Standard kubectl configuration file
• Bearer Token — Direct token authentication
• Client Certificate — Mutual TLS with X.509 certificates
• Service Account — Namespace-scoped service account tokens
• OIDC — OpenID Connect via external identity providers

All credentials are encrypted at rest using AES-256-GCM before storage in MongoDB.

Resource Watchers

After a workflow is deployed, the Core starts a ResourceWatcher for each Kubernetes resource. Watchers use the dynamic client-go client with field-selector scoping so they only receive events for the specific resource they own.

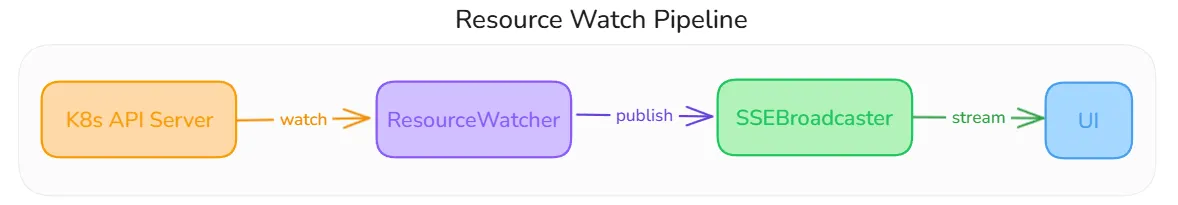

The pipeline works as follows:

1. K8s API Server streams watch events (ADDED, MODIFIED, DELETED) to the ResourceWatcher for one of 14 supported resource types (Deployment, Service, StatefulSet, DaemonSet, Job, CronJob, Ingress, ConfigMap, Secret, PVC, Pod, ReplicaSet, HPA, NetworkPolicy).
2. ResourceWatcher extracts a meaningful status using a per-type extractor (e.g., for a Deployment: compares readyReplicas vs replicas and surfaces any pod-level failure conditions). If the status has changed, it writes the new state to MongoDB.
3. SSEBroadcaster receives the publish event and fans it out to all currently subscribed UI clients on the workflow:<id> and resource:<id> stream keys.
4. UI receives the node_update or status_change event and updates the canvas node appearance in real time.

Watchers implement exponential backoff reconnection (5s base, 60s max) so transient API server disruptions self-heal. The ResourceWatcherManager singleton tracks all active watchers and stops them cleanly on workflow archive or server shutdown.

Health Monitoring

A background ClusterHealthMonitor runs every 60 seconds. It iterates all registered clusters, attempts a lightweight API server ping using the stored (decrypted) credentials, and writes the result (connected / error) back to MongoDB. The UI reflects this status in the cluster selector and on the dashboard without any manual refresh.
