Workflow Lifecycle

A workflow in KubeOrch represents a complete Kubernetes application topology — the set of resources, their configurations, and the connections between them.

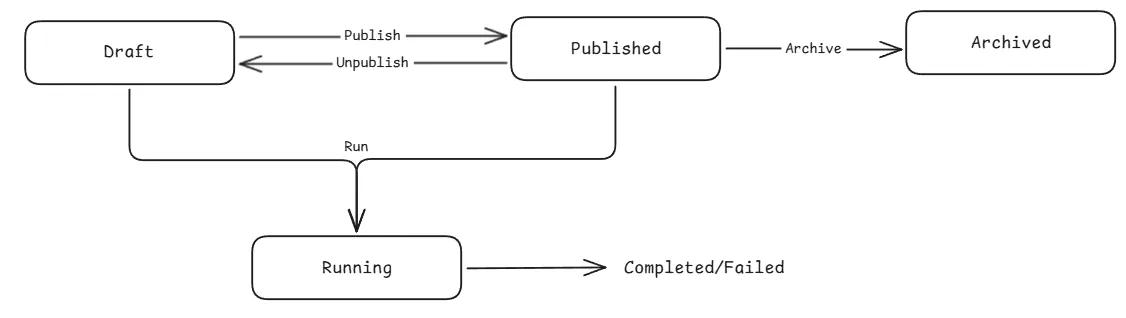

Workflow States

• Draft — Initial state. Workflow is being designed on the canvas.
• Published — Workflow is finalized and ready for deployment.
• Archived — Workflow is no longer active but preserved for reference.

Step-by-Step Lifecycle

1. Create

A new workflow requires a name and a target cluster. The cluster determines where resources will be deployed.

POST /v1/api/workflows
{
  "name": "My Web App",
  "cluster_id": "production-cluster"
}

2. Design (Canvas)

On the visual canvas, users:

• Add nodes from the Command Palette (Cmd+K) or by dragging from the sidebar
• Configure nodes by clicking them to open the settings panel
• Connect nodes by drawing edges between ports (e.g., Service → Deployment, Ingress → Service)
• Auto-save — changes are debounced and saved automatically

3. Save

Saving persists the current canvas state (nodes + edges) to the database without creating a version snapshot:

POST /v1/api/workflows/:id/save
{
  "nodes": [...],
  "edges": [...]
}

4. Run (Deploy)

Running a workflow:

1. Creates a version snapshot — captures current nodes/edges as a numbered version
2. Executes the workflow — processes each node and applies resources to Kubernetes
3. Starts watchers — monitors deployed resources for status changes
4. Streams status — sends real-time updates via SSE

POST /v1/api/workflows/:id/run
{
  "trigger_data": {}
}

The response includes a run_id for tracking the execution.

5. Monitor

During and after deployment, users can:

• Watch node status on the canvas (green = healthy, yellow = partial, red = error)
• Stream pod logs in the mini-logs panel or resource detail page
• Open a terminal into running containers via the WebSocket terminal
• View diagnostics for failing nodes with suggested auto-fixes

6. Version & Iterate

Every run creates an automatic version. Users can also create manual versions with tags and descriptions.

Key version operations:

• List versions — paginated history of all versions
• Compare versions — side-by-side diff showing added, removed, and modified nodes/edges
• Restore version — roll back to a previous version (creates a new version from old state)

Edge Semantics

Edges (connections between nodes) carry semantic meaning:

Source Node	Target Node	Edge Meaning
Service	Deployment	Service routes traffic to this Deployment’s pods
Ingress	Service	Ingress path forwards to this Service
HPA	Deployment/StatefulSet	HPA scales this workload
ConfigMap	Deployment/StatefulSet	ConfigMap is volume-mounted into containers
Secret	Deployment/StatefulSet	Secret is volume-mounted into containers
PVC	Deployment/StatefulSet	PVC is volume-mounted for persistent storage
NetworkPolicy	Any workload	Policy applies to this workload’s pods

When an edge is drawn, the UI automatically updates the linked fields in the node data (e.g., _linkedDeployment, _linkedConfigMaps).

Run Execution Details

A workflow run tracks:

Field	Description
status	running, completed, failed, cancelled
version	Which version was deployed
started_at	When execution began
completed_at	When execution finished
duration	Total execution time in milliseconds
node_states	Per-node execution state and status
logs	Execution log messages
triggered_by	manual, schedule, or webhook
